Slim System CUTTER
arrow 3 catalog


Slim System professional cutter


Hand cutting system with connectable guides.

For manual cutting of large format sheets.

Cutting capacity of 320cm. extendable as needed with additional guides.
Facilitates a straight cut without deviations.
Offers better scoring performance and quality. Extreme Scoring Wheel.
Progressive separation of the material, reducing the risk of breakage.
Cutting capacity of up to 320cm. Extendable as needed with additional guides.
With silicone cords incorporated in the guides at its base & the fixing suction pads, the SLIM SYSTEM guarantees accurate straight cuts without deviation.
Tungsten carbide roller with titanium treatment bearing of Ø22mm to offer a high performance and quality cut.
Separation system, by means of adjustable pincers, which ensure a gradual separation of the tile, thus reducing risk of breakage.

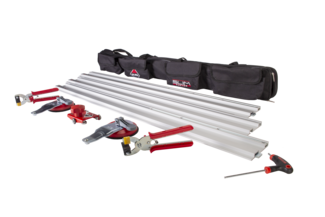

The set consists of:
Three 110 cm guides, 1 scoring wheel with an EXTREME Ø22 mm roller guide (ref. 01901), 2 breaker nippers, 2 suction cups for securing rough surfaces. Reinforced nylon carrying bag.
To separate thicknesses of 6 mm or more, use the slim breaker (ref. 18917)



The displayed product may not correspond exactly with the actual model.

Cutting Length Cutting height Bearing system Patent Pending
 Show in Inch/Lb
REF.

With carrying case Cutting length Cutting height Weight with carrying case Units per box Units per pallet
Slim System Cutter18911Yes 320 cm3-6 mm6.9 kg1 32
Slim Cutter18949Yes 320 cm3-6 mm6.9 kg1 32
