TQ   High precision.
Chrome-plated trapezoidal guide.
Rotating square, with central pivot point. More precise angle cuts.

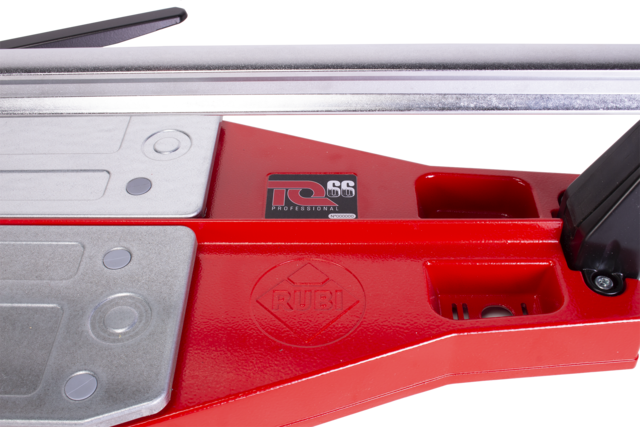

Injected aluminium base for greater robustness.
With lateral end stop for repetitive cuts and thin strips.
Equipped with 2 additional arms for large-sized ceramic or porcelain tiles (Model 102).
Handle with soft grip for better ergonomics and comfort.
Equipped with Ø22 mm EXTREME scoring wheel. For ceramic tiles with rough or structured surfaces. Compatible with Ø22 mm scoring wheel (ref. 18914) for tiles with smooth surfaces.

Cutting height Separator power Mobile separator Repetitive cuts Angular measuring Base accessory Soft MAGNET Bearing system One Hand Action Patented
fons granate
REF.

 Performance level Cutting length Diagonal cutting length Cutting height Separator power Net weight without packaging Units per box Units per pallet
fons granate
TQ-6614907SUPERPRO 66 cm46x46 cm5-15 mm800 kg12 kg1 12
fons gris
TQ-7514908SUPERPRO 75 cm53x53 cm5-15 mm800 kg12,7 kg1 12
fons gris
TQ-10214909SUPERPRO 102 cm70x70 cm5-15 mm800 kg16,8 kg1 12
fons gris
TQ-66 Inch.14997SUPERPRO 66 cm46x46 cm5-15 mm800 kg12 kg1 12
fons gris
TQ-75 Inch.14998SUPERPRO 75 cm53x53 cm5-15 mm800 kg12,7 kg1 12
fons gris
TQ-102 Inch.14999SUPERPRO 102 cm70x70 cm5-15 mm800 kg16,8 kg1 12
fons gris
fons gris

TQ 2TQ 3TQ 4TQ 5
