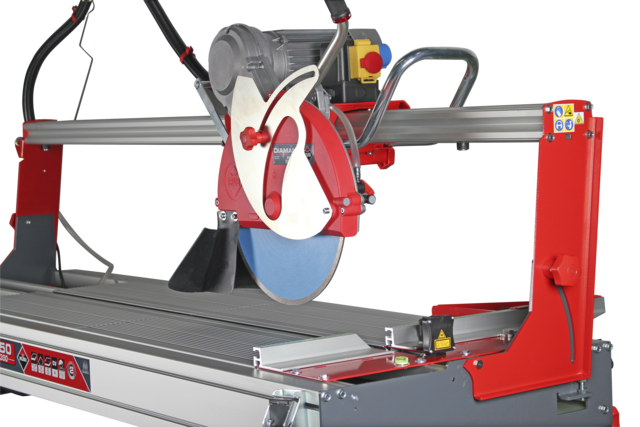

DX-350 N 1000 |
 |
|
|
Equipped with protective safety system for segmented blades.
With thermal security switch.
Water pump cooling of blade with flow control valve.
Diamond blade Ø 14” (350 mm) not included.
Allows the use of a Ø 12” (300 mm) blade.

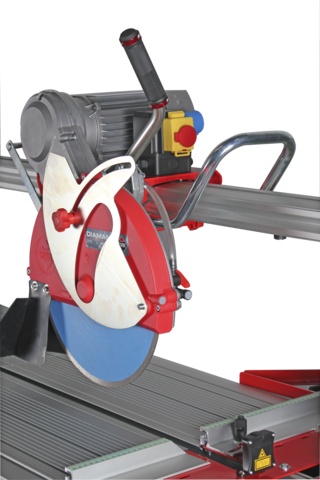

Adjustable mobile head with plunge effect capability.
Motor on top and belt transmission.
With lateral stop for repetitive cuts.

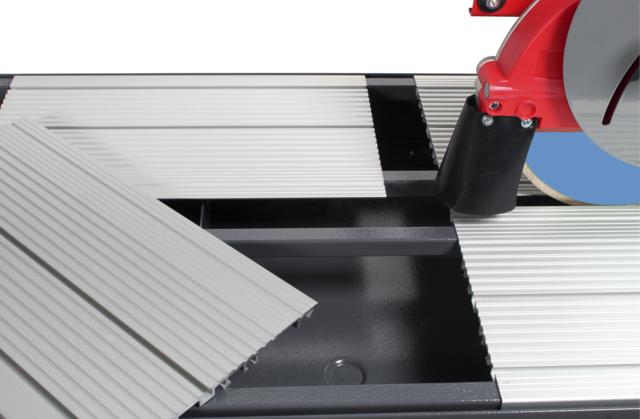

Aluminium working surface removable for easy cleaning.
Removable water tank system.
2mW line laser.
Circular level for easy field installation.
Machine supplied without cable.
Supplied with ZERO DUST system already assembled. Also provided with a second anti-splash standard protector |
|
 |
|
|
REF.
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
 |
DX-350-N 1000 | | 52905 | PREMIUM | 230V-50 Hz. | 2800 | 102,5 cm | 118,5 cm | 83,5x83,5 cm | ∞ cm | 65 mm | 105 / 220 mm | 25,4 mm | 300-350 mm | 170x86x143 cm | 92 kg | Yes | 1 | **1 | |
 | DX-350 N 1000 | | 52906 | PREMIUM | 220V-60 Hz. | 3400 | 102,5 cm | 118,5 cm | 83,5x83,5 cm | ∞ cm | 65 mm | 105 / 220 mm | 25,4 mm | 300-350 mm | 170x86x143 cm | 92 kg | Yes | 1 | **1 | |
 | DX-350 N 1000 | | 52907 | PREMIUM | 120V-50 Hz. | 2800 | 102,5 cm | 118,5 cm | 83,5x83,5 cm | ∞ cm | 65 mm | 105 / 220 mm | 25,4 mm | 300-350 mm | 183x80x115170x86x143 cm | 92 kg | Yes | 1 | **1 | |
 | DX-350 N 1000 | | 52908 | PREMIUM | 120V-60 Hz.Inch. | 3400 | 102,5 cm | 118,5 cm | 83,5x83,5 cm | ∞ cm | 65 mm | 105 / 220 mm | 25,4 mm | 300-350 mm | 183x80x115170x86x143 cm | 92 kg | Yes | 1 | **1 | |
 | DX-350 N 1000 | | 52909 | PREMIUM | 380V-50Hz.3F | 2800 | 102,5 cm | 118,5 cm | 83,5x83,5 cm | ∞ cm | 65 mm | 105 / 220 mm | 25,4 mm | 300-350 mm | 170x86x143 cm | 92 kg | Yes | 1 | **1 | |
 |
 |
|
|
|
|
