fons gris  TR-S
fons granate

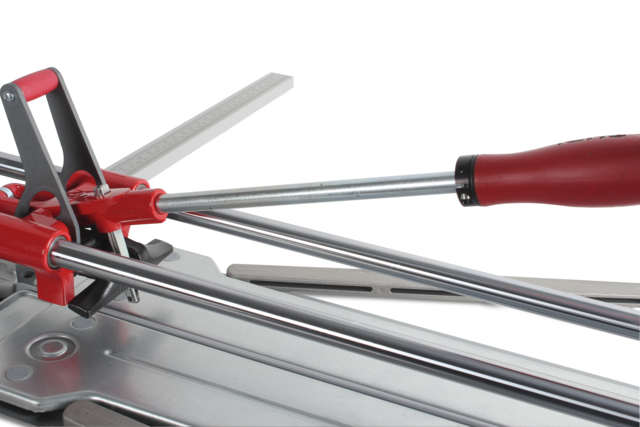

TR-S   Chromed and rectified steel guides, with anti-rust treatment.
Lateral stop for repetitive cuts.
Base supports large format tiles.
Two-layer base with shock absorption effect.

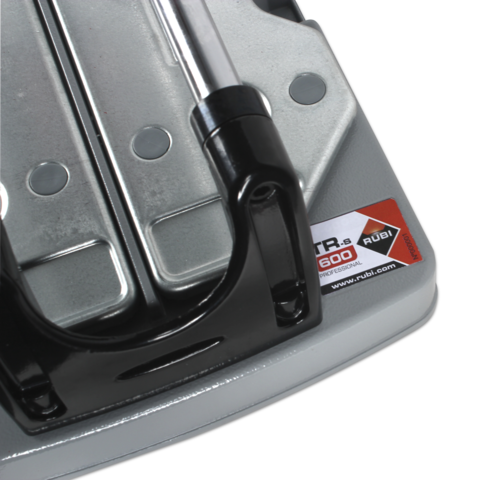

Highly resistant aluminium base.
Interchangeable scoring wheels from Ø1/4"(6mm) to 7/8" (22mm).
Ø1/4"(6mm) & Ø13/32"(10mm) scoring wheels included.
Comes with transport case.

Cutting height Separator power Mobile separator Repetitive cuts Angular measuring Base accessory Soft
fons granate
REF.

 With carrying case Cutting length Diagonal cutting length Cutting height Separator power Weight with carrying case Units per box Units per pallet
fons granate
TR-600 S 17936Yes 60 cm42x42 cm6-15 mm600 kg13,3 kg2 18
fons gris
TR-700 S 17949Yes 71 cm50x50 cm6-15 mm600 kg15 kg1 15
fons gris
TR-600 S Inch17940Yes 60 cm42x42 cm6-15 mm600 kg14 kg2 18
fons gris
TR-700 S Inch17950Yes 71 cm50x50 cm6-15 mm600 kg15,9 kg1 15
fons gris
fons gris

TR-S 2TR-S 3TR-S 4TR-S 5
