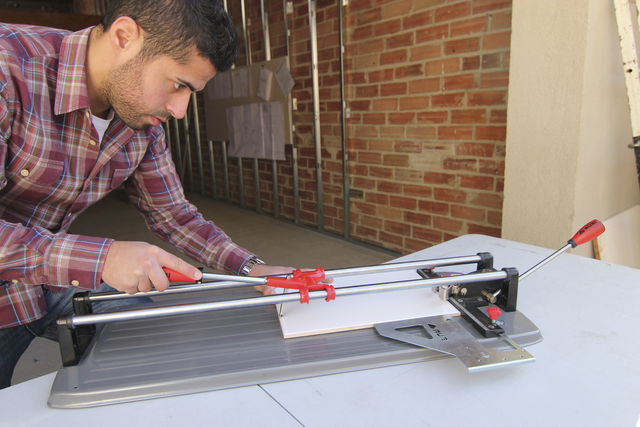

TS-PLUS   Reinforced base and ergonomic shape.
High performance single point breaker.
Up to 800 Kg breaking pressure.
Double guide for direct view of the scoring/cutting line.
Chromed steel guides, rectified and calibrated, with anti-rust treatment.
Lateral stop for repetitive straight and 45º cuts.
Interchangeable scoring wheels ranging from 6 mm to 22 mm.
Includes 6 mm & 10 mm scoring wheels.
Transport case included.

Cutting height Separator power Fixed separator Repetitive cuts 45º cuts Soft
fons granate
REF.

 With carrying case Cutting length Diagonal cutting length Cutting height Separator power Weight with carrying case Units per box Units per pallet
fons granate
TS-43 PLUS16940Yes 43 cm30x30 cm6-15 mm800 kg6,4 kg1 24
fons gris
TS-57 PLUS16950Yes 57 cm40x40 cm6-15 mm800 kg9,6 kg1 24
fons gris
TS-66 PLUS16960Yes 66 cm46x46 cm6-15 mm800 kg13,4 kg1 20
fons gris
TS-75 PLUS16970Yes 75 cm53x53 cm6-15 mm800 kg15 kg1 20
fons gris
fons gris

TS-PLUS 2TS-PLUS 3TS-PLUS 4TS-PLUS 5
